Beschrijving

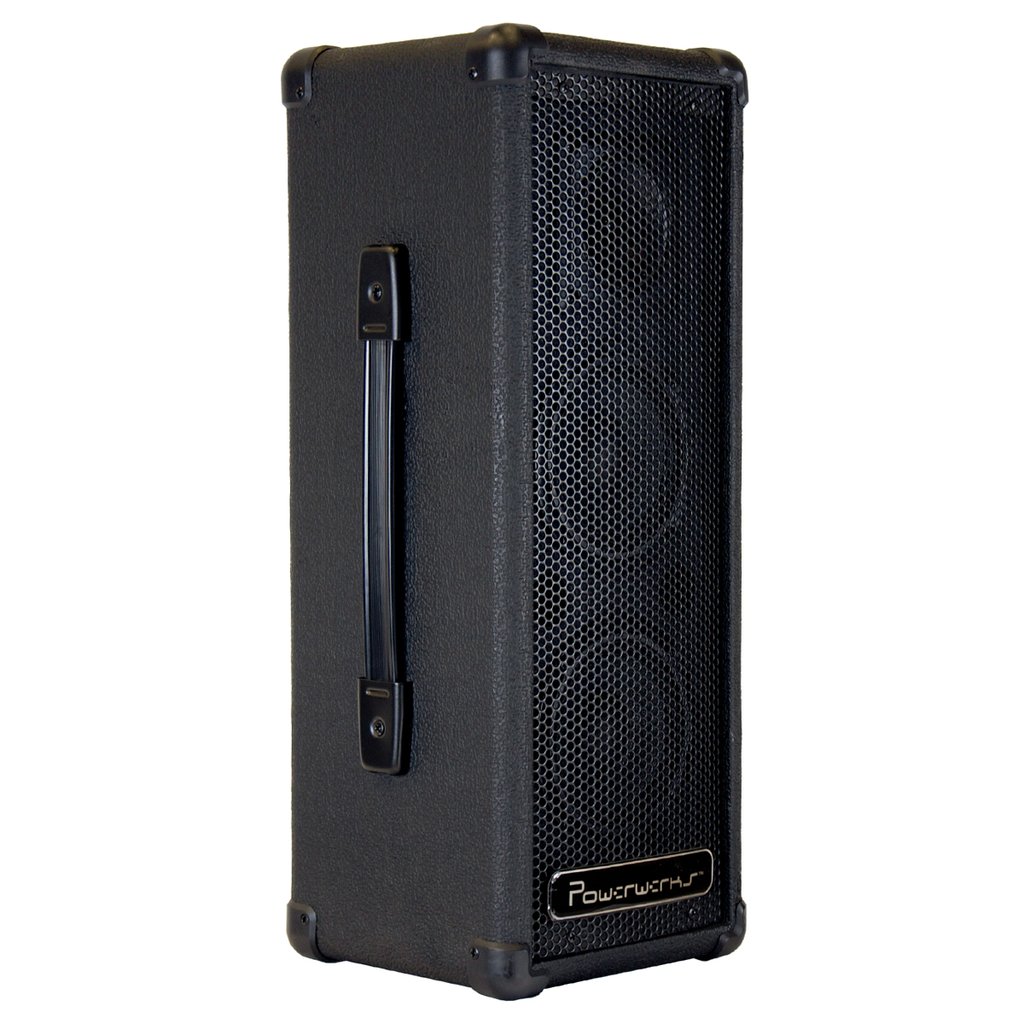

Powerwerks Tower PA Speaker with Bluetooth® ~ 50This lightweight full range personal

PA system features two 5″ Eminence® speakers with a high frequency driver, multiple inputs, phanto power, and balanced XLR outputs.This lightweight full range personal PA system features two 5″ Eminence® speakers with a high frequency driver, multiple inputs, phanto power, and balanced XLR outputs.

Specifications
Output Power
50W

Accepted Inputs
Channels 1 and 2: Mic XLR, Line level 1/4″ Un-balanced

Hum and Noise
-65 dB: Residual noise, all level controls at 0% (minimum)
-48 dB Nominal system noise, all level controls at 50%

System Gain (Measurements made at 1 kHz)
+70 dB: Mic to speaker output (Channel 1 and 2)
+56 dB: Line to speaker output (Channel 1 and 2)
+42 dB AUX IN to speaker output

Channel EQ (High, low)
4 kHz and above, 800 Hz and below

Powerlink (In and OUT)
Both jacks accept a balanced input and sends a pre-master volume output mix of channels.
Recommended use. Linking two PW505BT units together

Subwoofer Out
Line out, 200 Hz-150 Hz

Phantom Power
+15, Mic inputs (Channel 1 and 2)

Power Requirements
Europe: 230VAC/50 Hz, 80 W Nominal
UK: 230VAC/50 Hz, 80 W Nominal

Speakers
2 x 5″, 25 W 16 Ohm each

Horn
3.5″ piezo driver

Power Capacity
50 W, RMS

Frequency Response
60 Hz – 20 kHz, Full range (subwoofer jack not used)
150 Hz – 20 kHz, Crossover active ( 1/4″ mono plug in subwoofer jack )

Nominal Impedance
Not designed for external speakers

Bluetooth® Module Features
Bluetooth® 3.0+EDR compliant Typical +2 dBm Class 2 output power Audio DAC 94 dB SNR A2DP profile support

Top Hat Speaker Connector: 35mm / 1 3/8″ diameter

Dimensions
7.2″ W x 18.8″ H x 7.3″ D
192mm W x 478mm H x 185mm D
